In a modern MATV / SMATV system, the digital TV distribution headend is the central point for receiving, processing, and distributing television signals.

Digital headends are used to collect signals from multiple sources, such as:

Satellite channels
Terrestrial TV signals
IPTV streams (from an existing network)
Cable signals
HDMI signals

and convert them into a format suitable for distribution across the entire network. In installations such as hotels, airports, stadiums, hospitals, universities, and large commercial buildings, the digital headend is a core component of the TV distribution system.

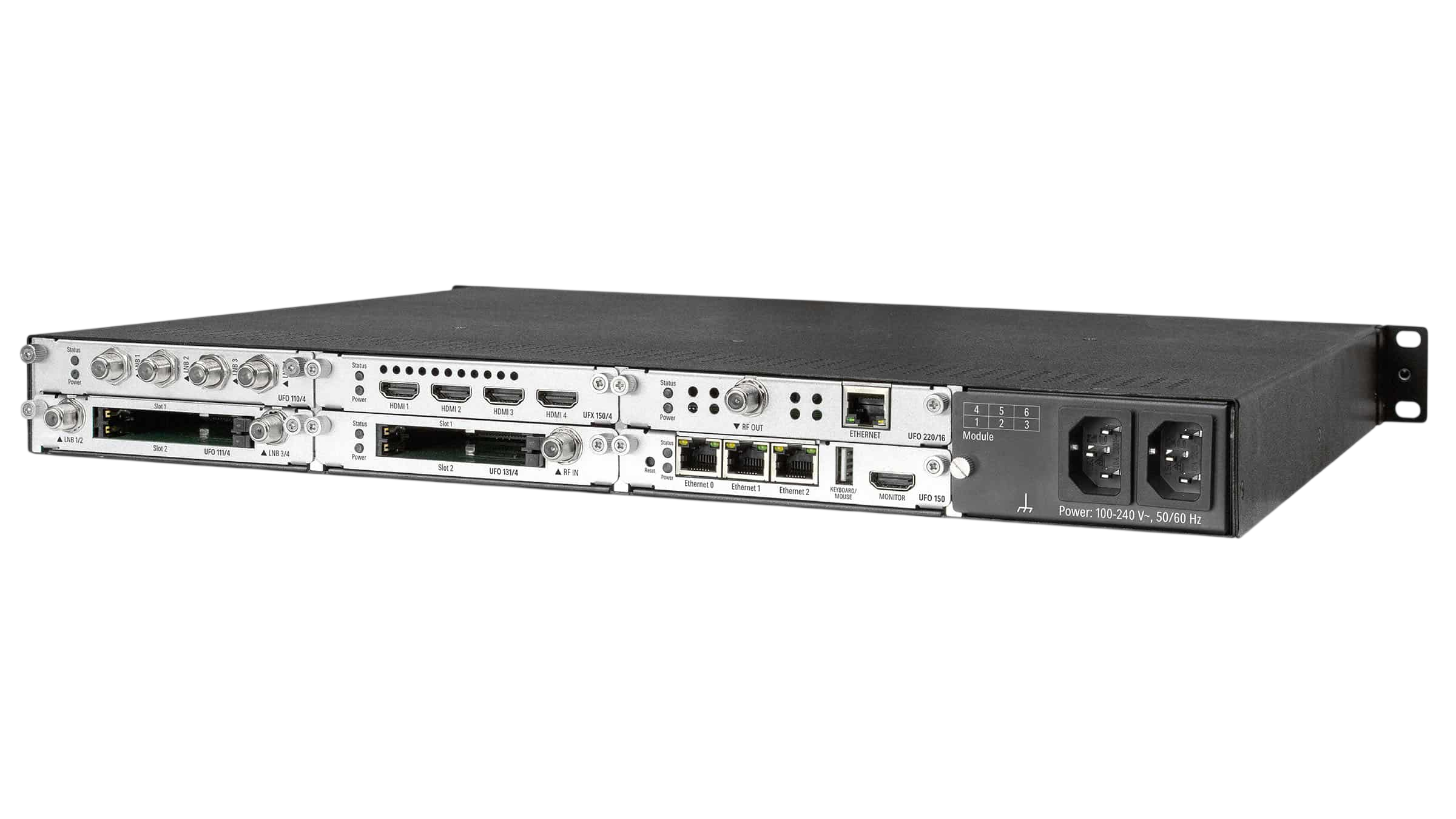

digital headend for hotels greece

What Is a TV Distribution Headend

A digital headend is the central signal processing unit in a MATV / SMATV network.

At this point, all TV signals from reception sources are collected and properly processed so that channels can be correctly distributed throughout the building’s internal network.

In simple terms, the headend is the “control center” of a TV distribution system.

How a Headend System Works

The operation of a digital TV distribution headend system involves a series of signal processing stages.

1. Signal Reception

The headend receives signals from multiple sources, such as:

Satellite dishes
Terrestrial antennas (DVB-T / DVB-T2)
Cable sources
IPTV network sources
HDMI sources

These signals are delivered to the headend equipment via coaxial cables, data networks, or HDMI connections.

2. Processing and Conversion

In the second stage, the TV channels are processed.

Depending on the application, the headend can perform functions such as:

Signal demodulation
Channel remodulation
Multiplex creation
Conversion of satellite signals to DVB-C/T
Conversion of signals into IPTV streams

This enables centralized organization and management of the TV channels to be distributed throughout the building.

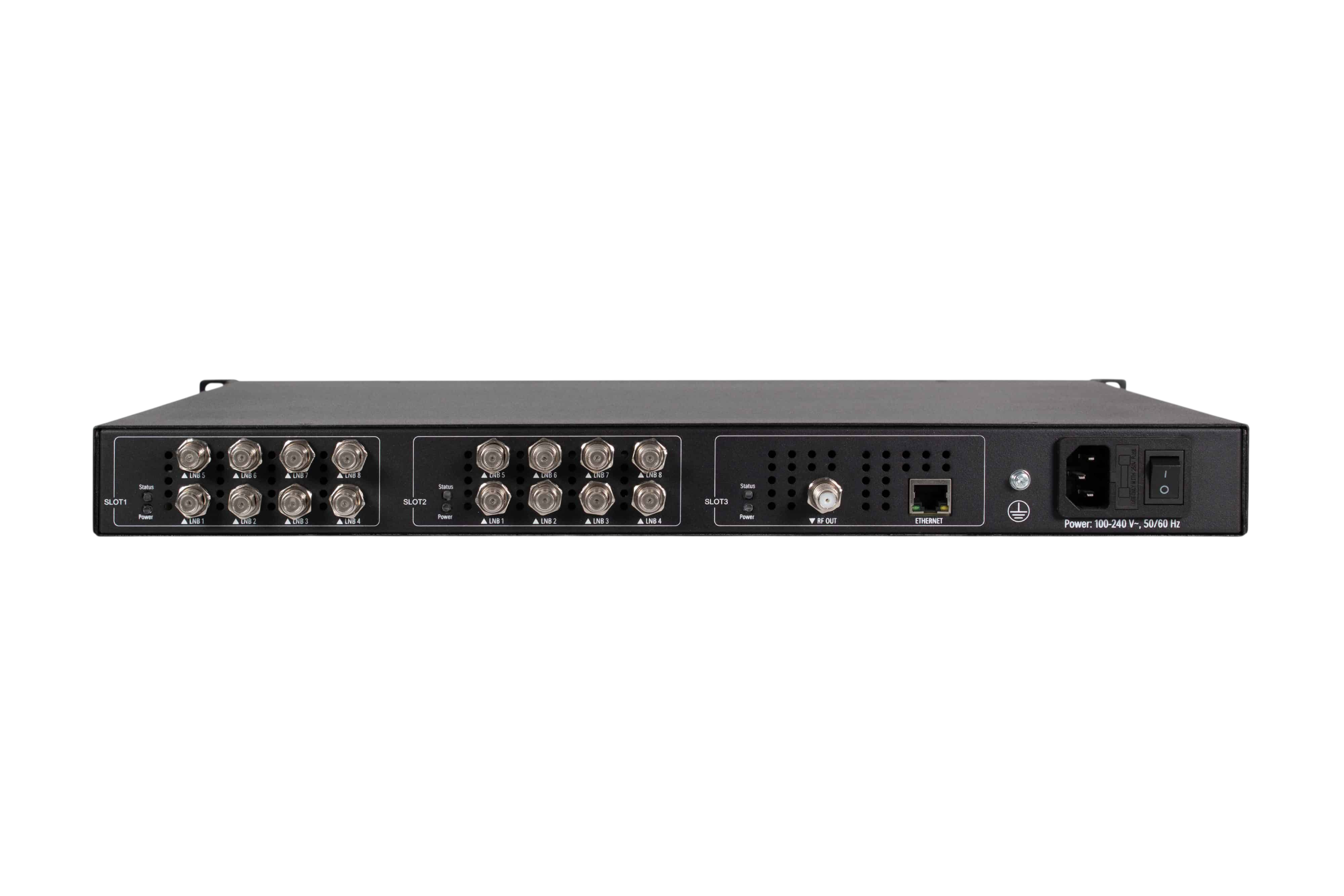

headends digital for hotels in greece

3. Distribution to the Network

Once processing is completed, the headend outputs the signal to the TV distribution network.

This signal can be distributed:

Through an RF network (DVB-C or DVB-T)
Via IPTV
Through hybrid distribution systems (DVB-T or DVB-C and IPTV simultaneously)

The TV signal is then routed to amplifiers, splitters, or network equipment, depending on the installation architecture, and distributed throughout the network.

Where a Headend System Is Used

Headend equipment is mainly used in installations where centralized management of TV channels and distribution to multiple points is required.

The most common applications include:

Hotels
Hospitals
Airports
Stadiums
Universities
Commercial buildings
Residential complexes
Hospitality facilities

In such installations, the use of a headend enables easy channel management and reliable TV signal delivery.

Advantages of Using a Headend

Using a TV distribution headend offers significant advantages in a MATV / SMATV system.

Among them:

Centralized TV channel management
Stable signal quality
Ability to convert signals into different standards
Easier maintenance and monitoring
System scalability and upgrade capability

For this reason, headend systems are a key component of modern professional TV distribution installations.

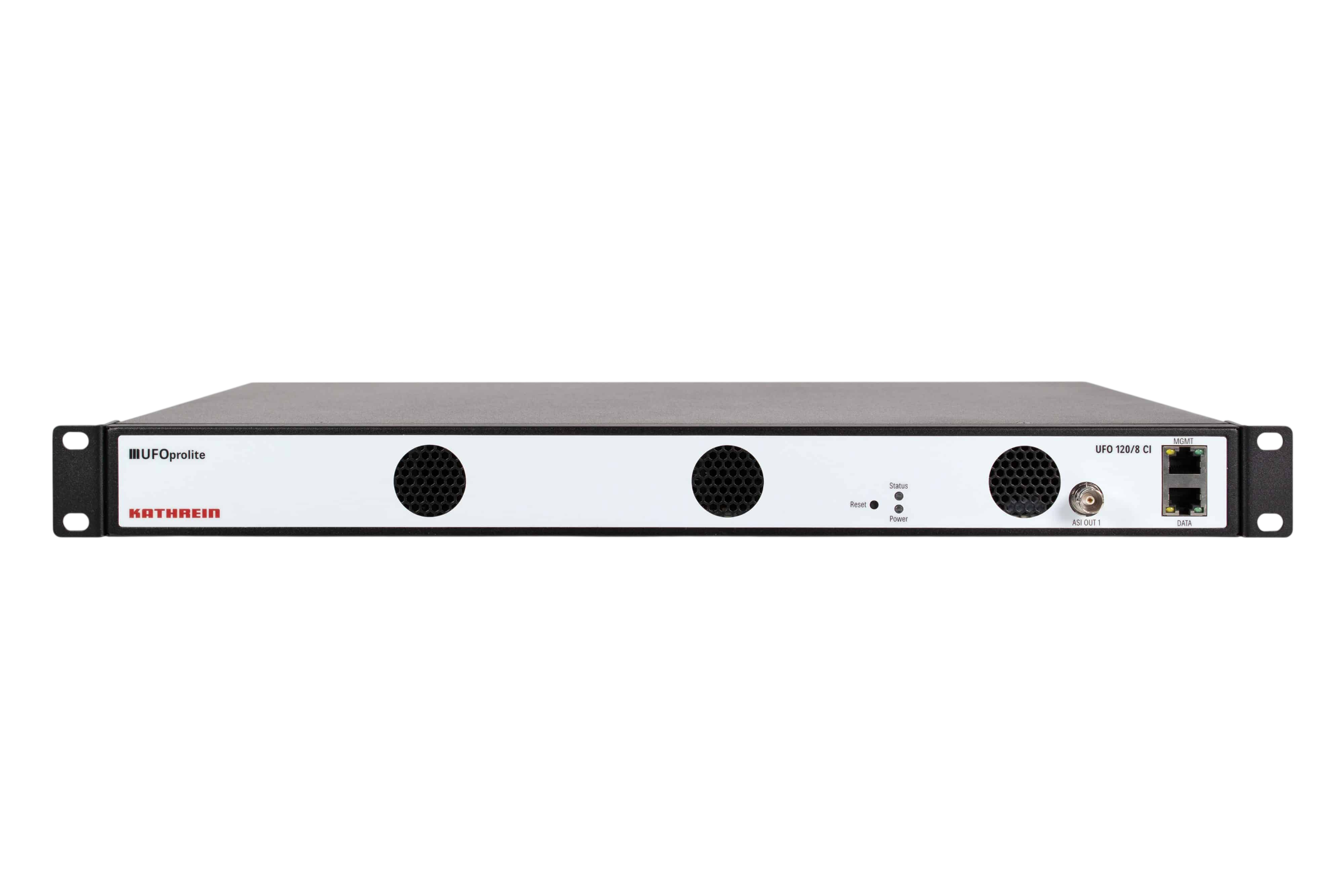

headend digital for satellite channels in greece

Headend and IPTV Distribution

One of the most important advantages of modern headend systems is their ability to support IPTV distribution.

Through this technology, TV channels can be distributed over an IP network, which is commonly used in hotels and professional installations.

IPTV distribution offers greater flexibility and the ability to integrate additional services, such as:

Information channels
Interactive services
Hospitality TV applications
Two-way communication

Professional Headend Equipment

Selecting the right headend equipment is a critical factor for the reliable operation of a MATV or SMATV system. This equipment is used for receiving, processing, and distributing TV signals to the building’s distribution network.

The market includes specialized manufacturers of professional TV distribution equipment that offer complete solutions for both small- and large-scale installations. Among them, Kathrein is one of the most recognized manufacturers worldwide, with solutions used in hotels, hospitals, residential complexes, and large commercial buildings.

LYRA S.A., as the exclusive representative of Kathrein in Greece, provides the expertise and equipment required for the design and implementation of complete MATV / SMATV systems, tailored to the needs of each installation.

headend digital for hotels in greece

Conclusion

The TV distribution headend is a fundamental component of any professional MATV or SMATV system. Through the headend, it is possible to centrally receive, process, and distribute TV channels to multiple points within a building.

The correct selection of headend equipment and proper system design are key factors for ensuring stable and reliable operation of the TV distribution system.
